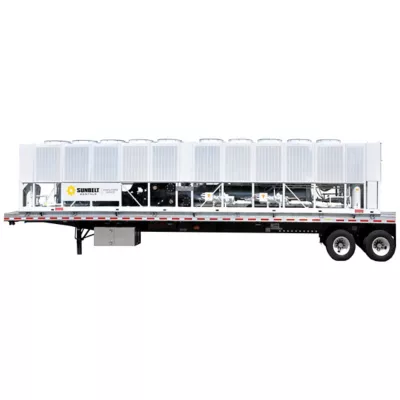

Electric 400-Ton Air-Cooled Screw Chiller System
The Electric 400-Ton Air-Cooled Screw Chiller System features a quiet yet highly efficient self-contained design. It features a 0.75-inch foam-insulated evaporator protected by aluminum jacketing for a freeze protection capability of up to -20 degrees Fahrenheit. Ideal for demanding cooling applications, it operates on a reliable 3-Phase, 460-volt electric power supply.
Products are subject to availability.
| Make | CAPS | |
| Model | PCHH-417TD | |
| Capacity | 400 ton | |
| Dimensions | 636"L x 103"W x 158"H | |
| FPCC** | NA | |
| Hose Connection | 6" | |
| Min Circuit Ampacity | 752 amps | |
| Pump Discharge | 100' | |
| Pump Size | 1,200 GPM | |
| VSD | Installed | |
| Voltage | 460V | |
| Weight | 48000 lbs |
Safety Requirements
- Eye Protection
- Gloves
