CAT CLASS:
1080212

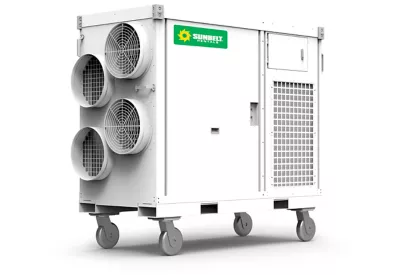

12 Ton Air Conditioner w/ Dehumidifier 480V 3 PH
Overview
Provides the cooling power for large area cooling and dehumidifying. This unit has a cooling area of 2,000/4,000 sq. ft. These units have a rugged, weatherproof design for outdoor installations. Runs on 480V/3 PH power. All models include an electrical disconnect switch and utilize 20" flexible duct for supply and return air.
Specifications
Products are subject to availability.
| Make | Airrex |
| Model | HSC-140 |
| Amp Rating | 30 |
| Capacity | 12 ton |
| Cooling Area | 4,800 sq. ft. |
| Dimensions | 62"L x 31"W x 65.2"H |
| Max Airflow | 3530 CFM |
| Return Duct Dia/Max Length | 12"/120' |
| Skid Mounted Weight | 1,162 lbs. |
| Supply Duct Dia/Max Length | 12"/120' |
| Voltage | 480V |
Safety information
Safety Requirements
- Eye Protection
- Gloves
