CAT CLASS:
0810525

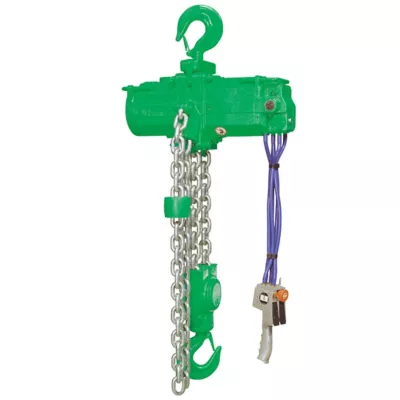

6 Ton Air Chain Hoist
Overview
Our 6 Ton Air Chain Hoists utilize a helical/spur gear drive and provides a smooth and quiet operation to lift and lower heavy loads. 40', 50' and 60' lift chains are available. Each unit is totally enclosed, high torque motors for heavy-duty operation. This model has 5.9 FPM lifting rate, 11.8 FPM lifting speed, 9.8 FPM lowering speed. and weighs 286lbs. Please wear a hard hat while using this model.
Specifications
Products are subject to availability.
| Make | Ingersoll-Rand | JD Neuhaus |
| Model | LCA0601C19MO | Profi 3TI/6TI2 |
| Air Requirement | 124 CFM @ 90 PSI | 195 CFM @ 85 PSI |
| Capacity | 6 ton | 3 ton/6 ton |
| Chain Falls | 1 | N.A. |
| Lifting Speed _(No Load) | 11.8 FPM | 32.8/16.4 FPM |
| Lifting Speed _(Rated Load) | 5.9 FPM | 164./8.2 FPM |
| Weight | 286 lbs. | 190/243 lbs. |
Safety information
Safety Requirements
- Eye Protection
- Hard Hat
- Gloves
