CAT CLASS:
0520130
70-79 HP Crawler Dozer LGP
Overview

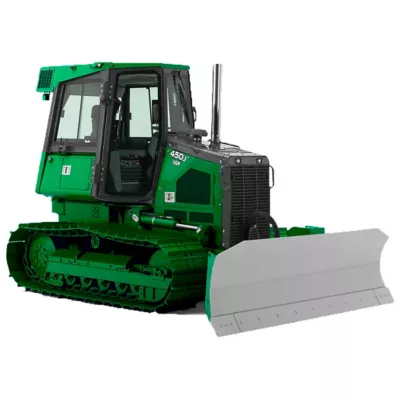

Crawler dozers feature power angle-tilt blades for outstanding performance and precision control in a variety of earthmoving applications. The blade can be angled left/right, tilted forward/back and raised/lowered with a single joystick control. Rugged powertrains with hydrostatic, or power-shift transmissions, provide smooth operation and excellent load capacity. This 75 HP low ground pressure bulldozer has a maximum blade width of 124”, a blade capacity maximum of 2.6 cubic yards, and a shoe width peak of 27”.
Specifications
Products are subject to availability.
| Make | John Deere |
| Model | 450K LGP |
| Blade Capacity | 2.5 cu. yd. |
| Blade Width | 10.3333 ' |
| Drawbar Pull_(1st gear/1 PHM) | 19000 lbs |
| Ground Pressure | 4.3 PSI |
| HP | 80 |
| Shoe Width | 24 " |
| Transport Dimensions | 13' 2"L x 9' 4"W x 9'H |
| Weight | 18752 lbs |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
