CAT CLASS:
0520200

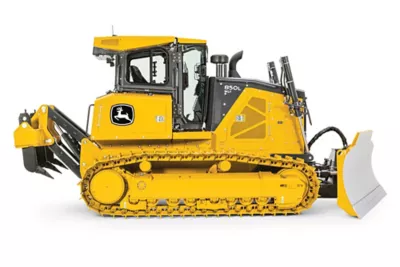

200-250 HP Crawler Dozer LGP
Overview
Crawler dozers feature power angle-tilt blades for outstanding performance and precision control in a variety of earth moving applications. The blade can be angled left/right, tilted forward/back and raised/lowered with a single joystick control. Rugged powertrains with hydrostatic, or power-shift transmissions, provide smooth operation and excellent load capacity. These low ground pressure bulldozers have up to 250 HP.
Specifications
Products are subject to availability.
| Make | John Deere |
| Model | 850L LGP |
| Blade Capacity | 5.9 cu. yd. |
| Blade Width | 14 ' |
| Drawbar Pull_(1st gear/1 PHM) | 72000 lbs |
| Ground Pressure | 5 PSI |
| HP | 225 |
| Transport Dimensions | 18'9"L x 14'W x 11'H |
| Weight | 51365 lbs |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
