CAT CLASS: 0070405

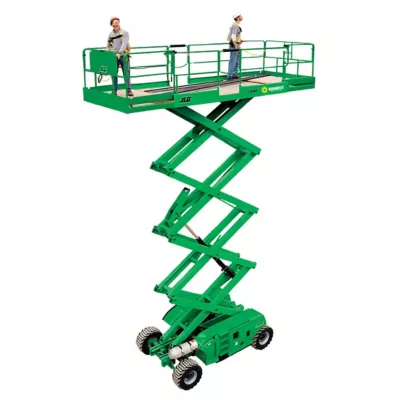

40' Rough Terrain Scissor Lift w/ Outriggers

Overview

The 40' rough terrain scissor lift with outriggers is perfect for increasing output in tough and uneven job site conditions. The lifts have a platform height of up to 43’ and a maximum working height of 50' depending on the model. The platform measures up to 156” x 72” depending on the model, with a 48" deck extension providing ample working space. Further, the platform capacity of between 800-1700 lbs allows for multiple workers with tools and supplies for optimal efficiency. The RT scissor lift is also equipped with outriggers for increased stability. The 4WD lift is able to drive on a grade of up to 30% to keep you moving. In addition, the lifts also features a standard 110V AC receptacle in the platform for a convenient power source while at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Specifications

Products are subject to availability.

Make Genie Genie Skyjack
Model GS-4390 RT GS-4069 RT SJ 8841
Fuel Type Diesel Diesel or dual fuel Diesel or dual fuel
Gradeability 50% 35% 30%
Overall Dimensions 192"L x 90"W 123"L x 69"W 163"L x 87"W
Overall Width 96 " 45 " N.A.
Platform Capacity 1500 lbs 800 lbs 1500 lbs
Platform Extension 60 " 60 " 48 "
Platform Height 43 ' 40 ' 41 '
Platform Size 156" x 72" 120" x 63" 134" x 67"
Retracted Height 116 " 108 " 114 "
Weight 14642 lbs 10245 lbs 10880 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
