CAT CLASS: 0580045

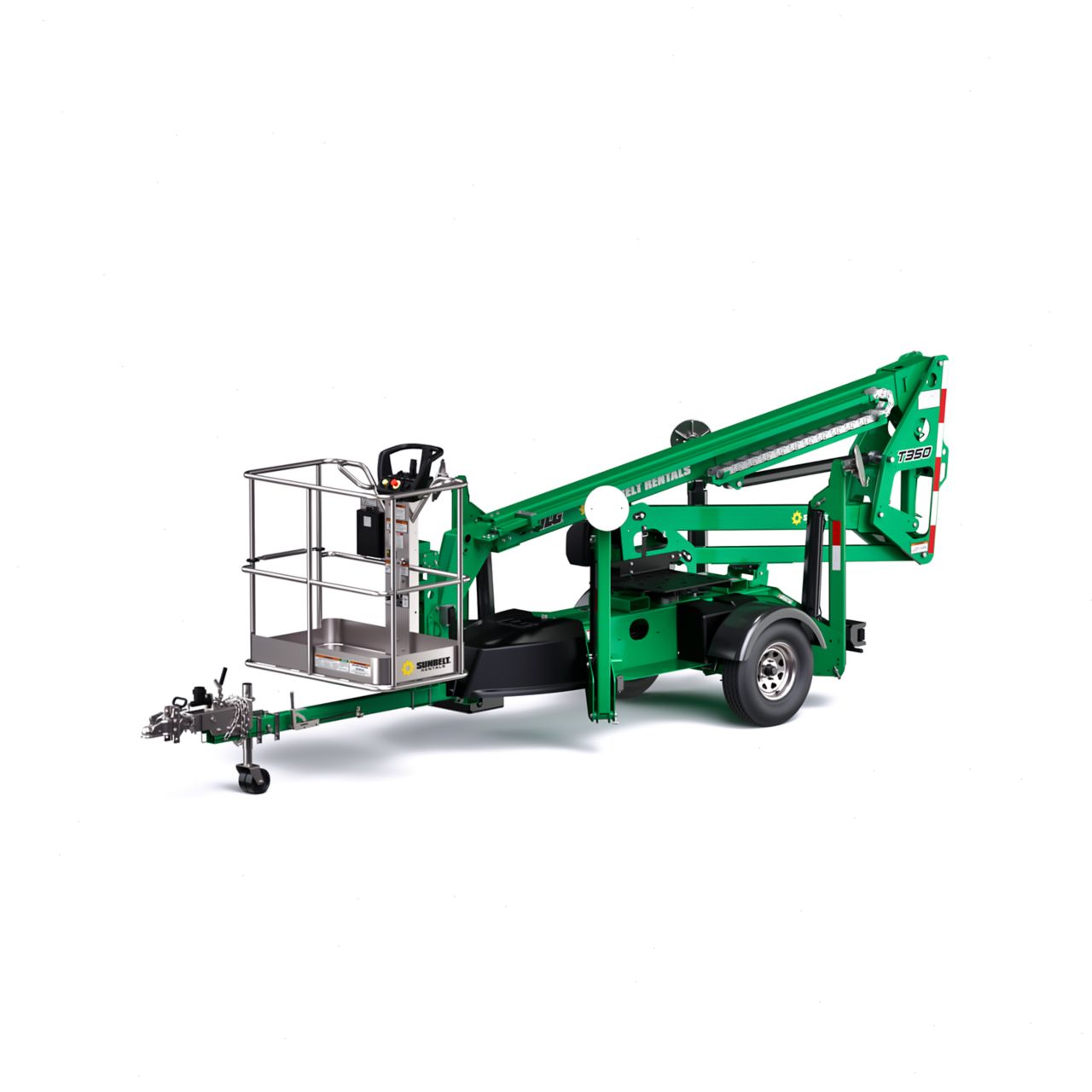

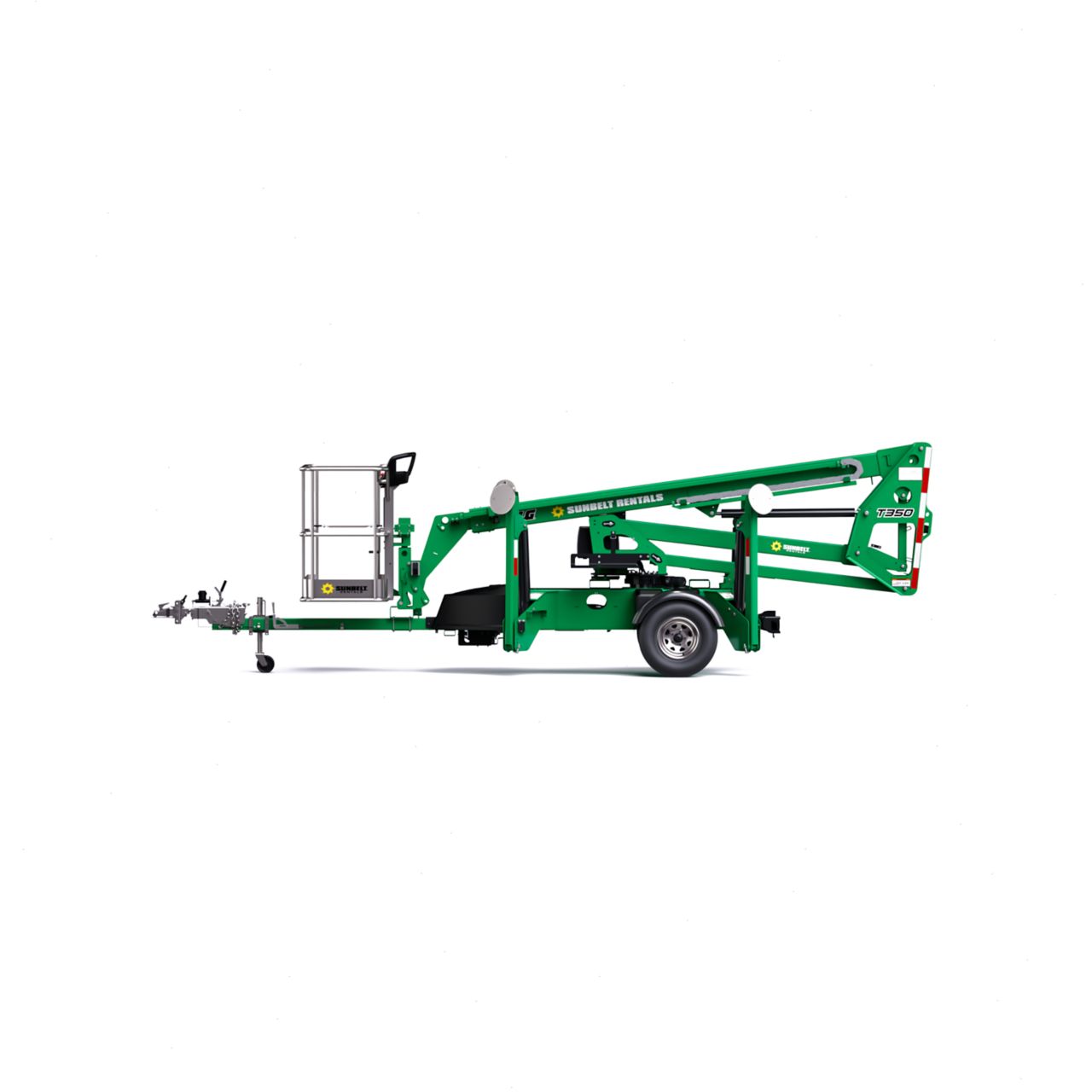

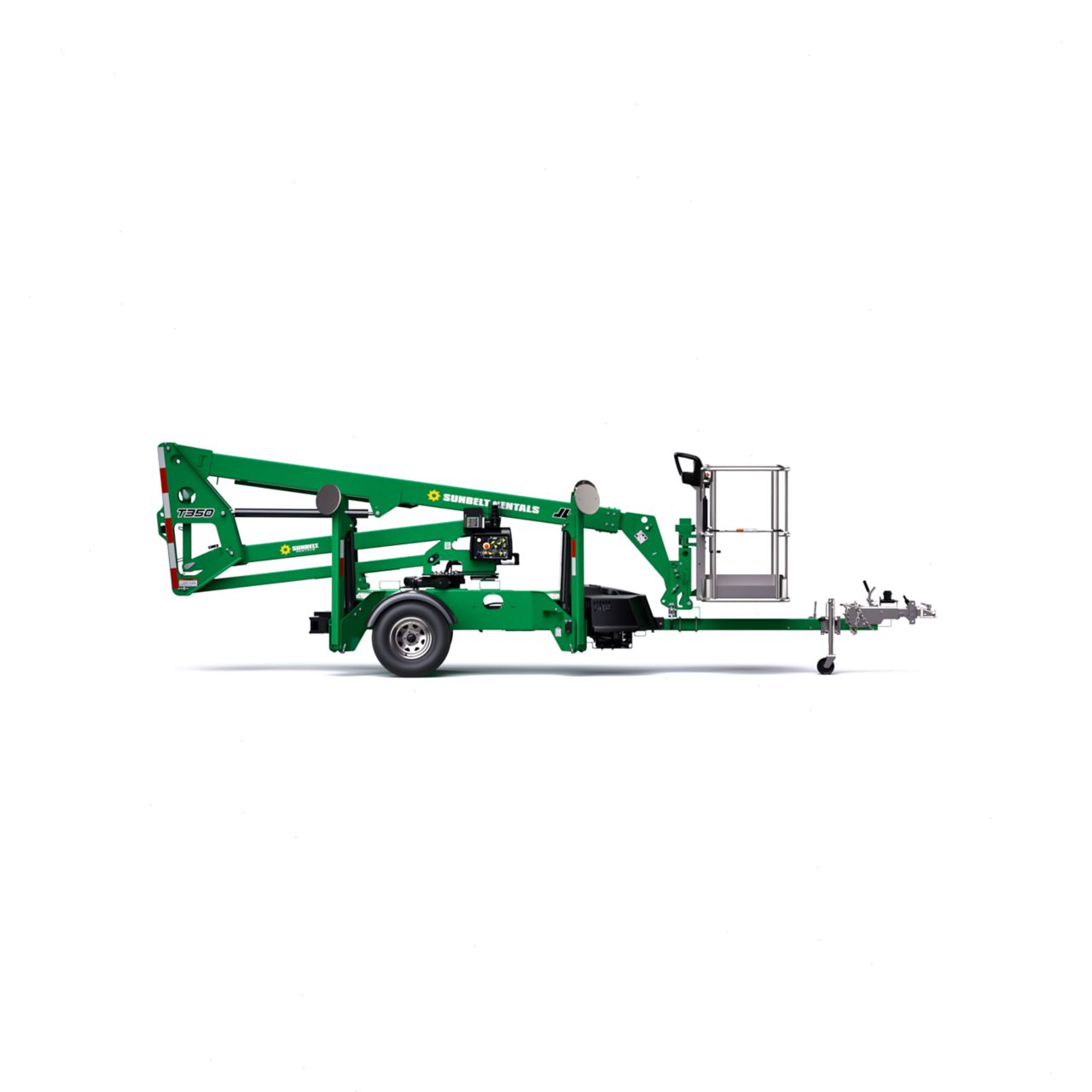

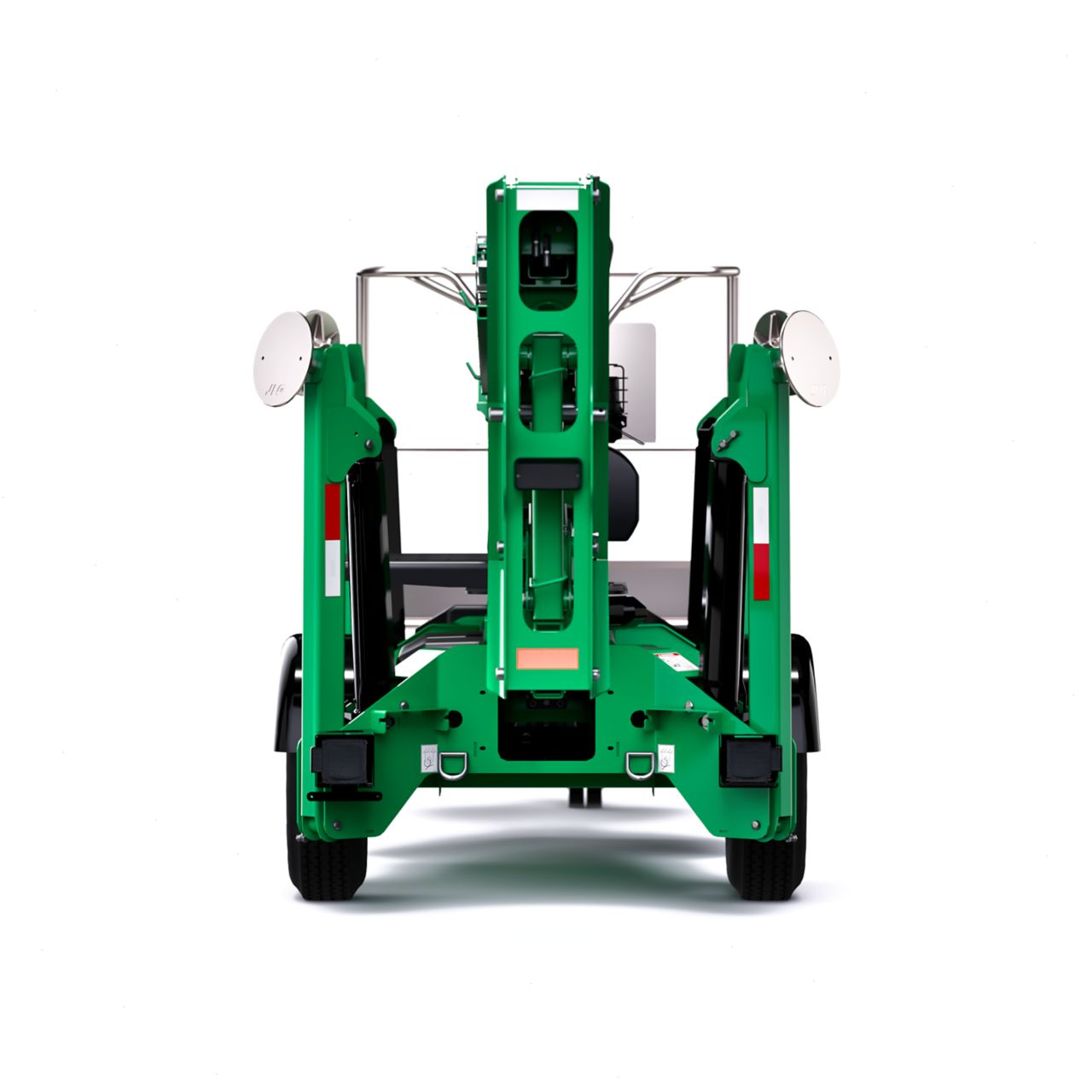

34' Towable Articulating Manlift

Overview

34' towable articulating manlifts provide the same reach capabilities as self-propelled articulating manlifts and are ideal for electricians, painters and other contractors that work at multiple job locations. The lift has a platform height of 34' and a maximum working height of 40'. It also features a 500 lb capacity platform that measures up to 48" x 30" depending on the model. All manlift models include a 110V AC receptacle at the platform for powering small electric tools. This articulating man lift has easy towing for up to 60 mph highway rating. Additionally, it is lightweight enough to use on lawns, slate or gym floors, and has variable-speed control system. Lastly, when using this model, it is important to have your training card and safety harness on you at all times.

Specifications

Products are subject to availability.

Make Genie JLG
Model TZ-34/20 DC T350
Horizontal Reach 18.3300 ' 20.1700 '
Overall Dimensions 18'L x 57"W 20' 11"L x 57"W
Platform Capacity 500 lbs 500 lbs
Platform Height 34 ' 34.4200 '
Platform Size 44" x 27" 48" x 30"
Power Source 24V DC 24V DC
Stowed Height 77" 78"
Up & Over Height 16.0800 ' 1.2500 '
Weight 3155 lbs 3400 lbs

Safety information

Safety Requirements
  • Safety Harness
  • Wallet (Training Card)
