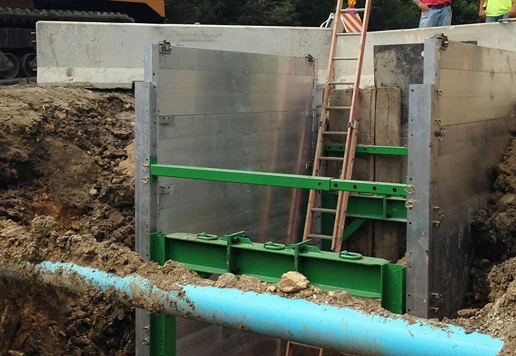

A trench box with a ladder inside.

Trench Shielding Applications

Trench shielding is an important protective system designed to prevent trench collapses—a significant risk in excavation operations. It uses structures like trench boxes and steel plates to secure trench walls, ensuring the safety of workers.

This protective system’s applications span various industries, including construction, pipe laying, and underground wiring projects, where it is critical in minimizing hazards and ensuring project success. By averting cave-ins and collapses, trench shielding systems significantly reduce the risk of injuries, fatalities, and project delays associated with such incidents, making it an indispensable element in excavation operations.

trench-shielding-applications-trench-shielding-applications-inline-1-sbr-v1-03042024





Types of Trench Shielding Systems

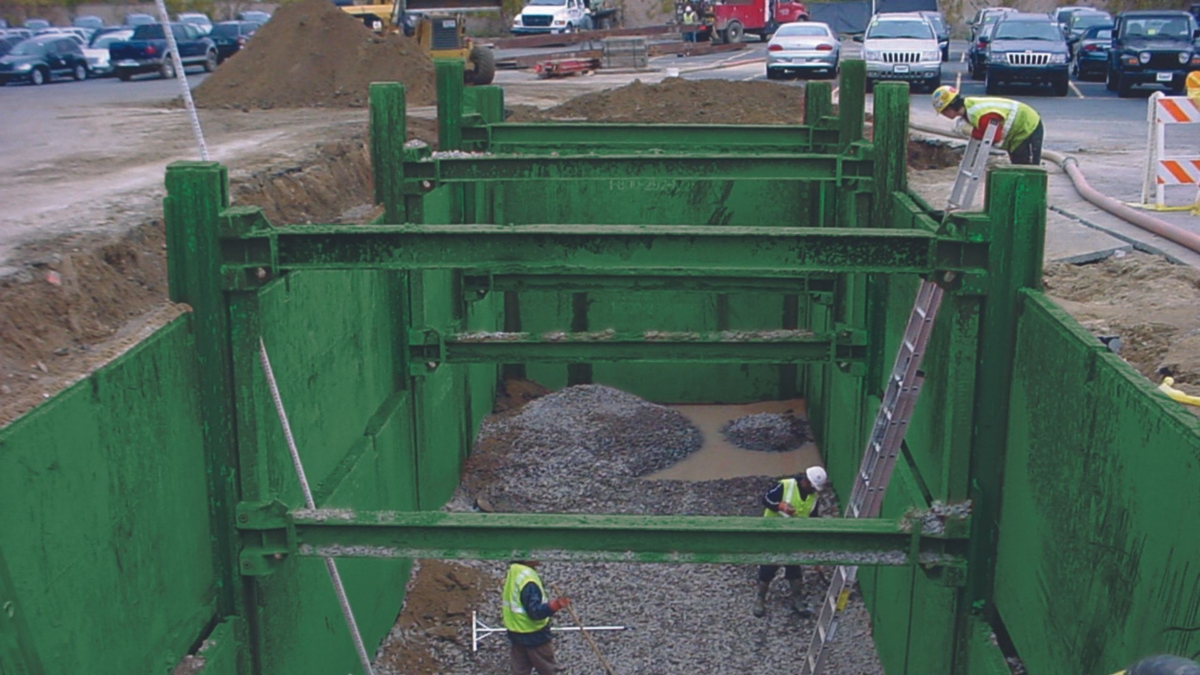

1. Trench Boxes



Trench boxes, or trench shields, are vital for securing workers in shallow excavations, typically in situations where the excavations are less than 20 feet in depth. These boxes are made with steel or aluminum, creating a protective cage along trench walls to keep workers safe.



Their straightforward design is cost-effective, making them suitable for smaller jobs. Trench boxes are particularly valuable when benching or sloping the trench is unnecessary. For optimal performance when selecting trench boxes, it is important to factor in the soil type, the soil’s water content, the depth of cut, and nearby loads on the site.



2. Hydraulic Shoring



Hydraulic shoring provides robust support for heavy-duty applications in large excavations, typically 20 feet deep or more. This shoring system uses hydraulic pistons pumped outward until they press against the trench walls to prevent soil or rock collapse.



Although installation takes more time compared to trench boxes, hydraulic shoring ensures a stable environment, making it vital for trench safety in construction. It is the preferred choice when facing the challenges of deep excavations as it offers substantial support and prevents the risks associated with soil instability.



3. Pneumatic Shoring



Pneumatic shoring relies on air pressure to support trench walls and weak or unstable structures. The main difference between pneumatic shoring and hydraulic shoring is the use of air pressure instead of hydraulic pressure.



The system is effective in high-water table situations and sandy or granular soils thanks to its ability to adapt to different excavation projects, regardless of trench depths and widths. It enhances safety by providing reliable support, especially in challenging soil conditions. However, while it is a versatile option suitable for various soil conditions, the system requires an on-site air compressor.

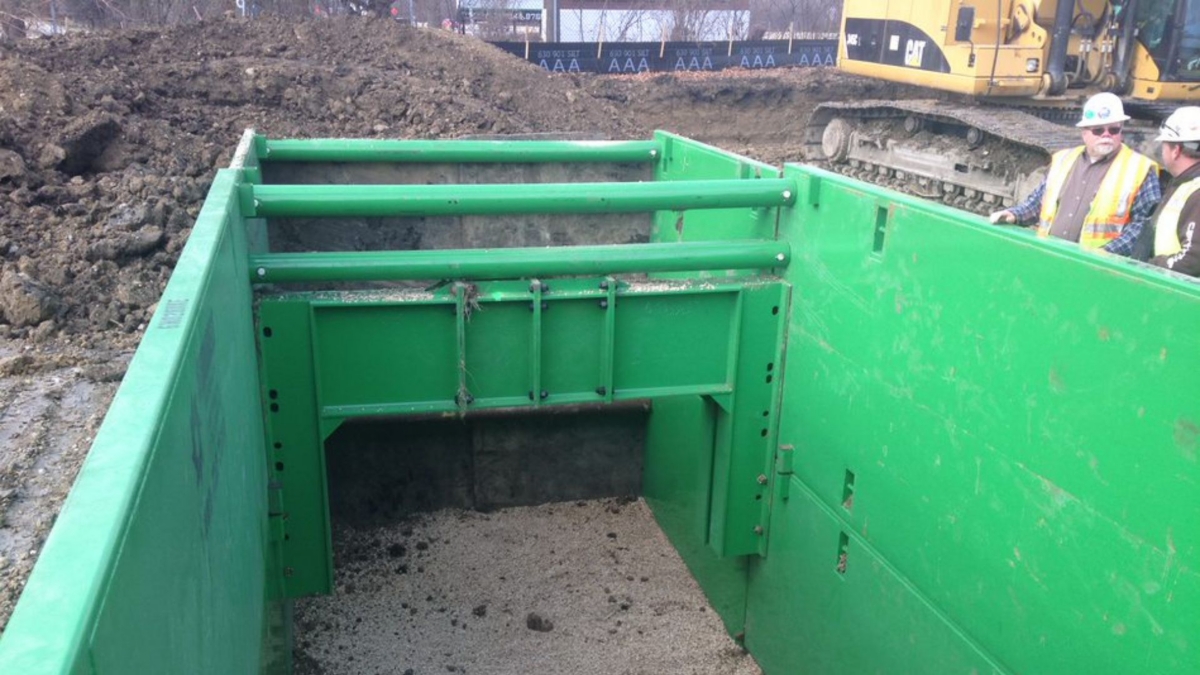

trench-shielding-applications-trench-shielding-applications-inline-2-sbr-v1-03042024





Applications of Trench Shielding in Utilities and Infrastructure Projects



Trench shielding plays an important role in utility and infrastructure projects, especially those involving underground installations. The primary objective is to ensure the safety of workers and protect crucial underground elements like pipes, cables, and other structures during excavation and construction activities.



Shielding systems like trench boxes and steel plates provide essential support to trench walls, effectively preventing accidents. It is crucial to note that these systems don’t support the excavation face but rather focus on safeguarding workers inside.



Notable Trench Shielding Applications in Utilities and Infrastructure Projects



Trench safety in utilities is critical, especially in projects involving underground construction or repairs. Specific applications include:



  • Sewer Line Repairs: Trench shielding systems safeguard workers and underground structures during the intricate process of sewer line repairs.
  • Water Main Installations: In water main installations, trench shielding is necessary for worker safety and for protecting critical underground infrastructure.
  • Laying Electrical Cables: During electrical cable laying projects, trench shielding ensures a secure environment for workers and prevents damage to cables.



In addition to protecting workers and critical underground infrastructure, investing in or renting high-quality trench shoring equipment improves efficiency and prevents unexpected delays. When selecting shoring equipment, consider excavation dimensions and soil conditions and factor in any adjacent structures, utilities, and roadways.



Trench Safety Measures



Trench safety in utilities is essential in preventing cave-ins and similar accidents. Additionally, trench shielding is important for compliance with regulatory standards and ensuring smooth operations.

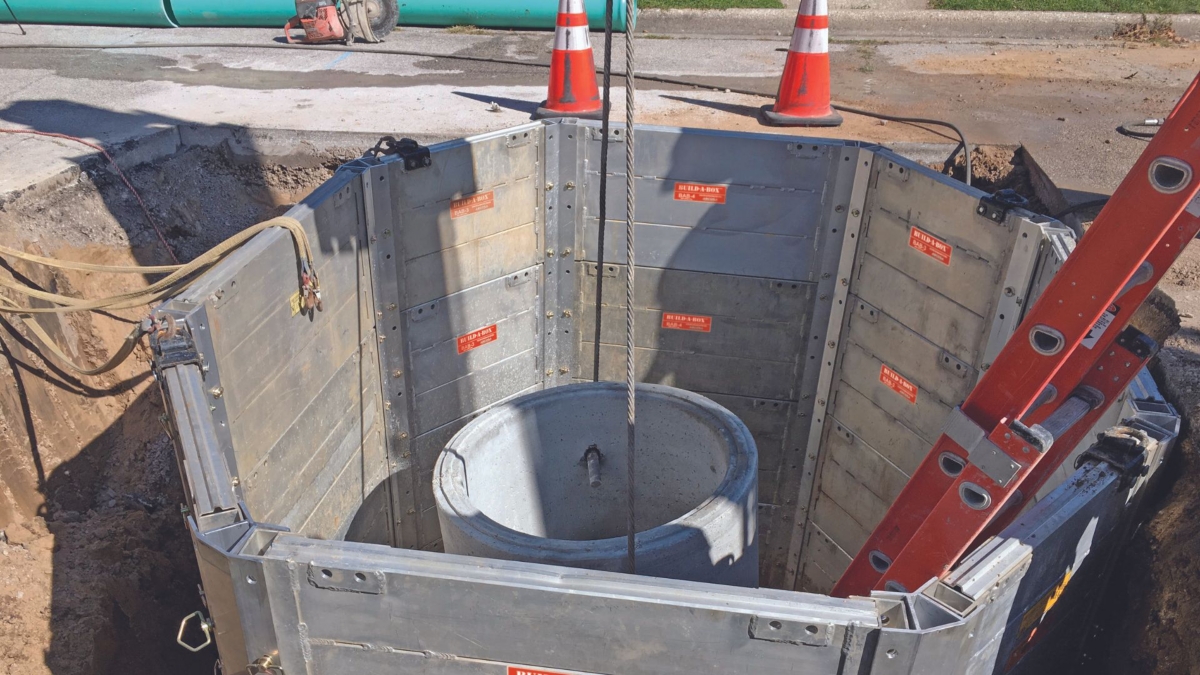

trench-shielding-applications-trench-shielding-applications-inline-3-sbr-v1-03042024





Applications of Trench Shielding in Construction and Excavation Projects



Trench shielding is a vital safety measure when it comes to trench safety in construction and excavation projects. It provides crucial protection for workers engaged in foundation work, basement construction, and deep excavation projects. Shielding systems, such as a sheet and frame system, safeguard workers inside excavations from hazards.



These protection systems are instrumental in preventing soil collapse and cave-ins that may occur during construction or excavation projects. Shielding systems, like steel plates and trench boxes, may not necessarily support the excavation face, but they prioritize the safety of workers inside the trench.



While methods like sloping, benching, and shoring can also prevent soil collapse, trench shielding is often preferred for its effectiveness in preventing cave-ins and maintaining a safe working environment.



Examples of Trench Shielding Applications in Construction and Excavation



In various construction and excavation projects, trench shielding plays a crucial role. Examples include:



  • Building Foundations: Trench boxes and other trench shielding systems are commonly used to protect workers during building foundation projects. They are effective in creating a safe and efficient excavation environment.
  • Bridge Construction: Trench shielding systems are often used for secure and efficient excavation in bridge construction projects. They protect workers from soil collapse, cave-ins, and similar hazards.
  • Pipeline Installations: Similar to other excavation projects, pipeline installations carry a certain degree of risk. Thankfully, trench shielding is a staple in this activity, as it ensures the safety of workers during excavation.



Final Thoughts



Trench shielding is crucial in preventing trench collapses, safeguarding workers, and ensuring the overall success of construction projects. Its role in maintaining a secure work environment is indispensable as a foundational safety measure.



As you navigate your trench excavation endeavors, we strongly recommend consulting with trench shielding experts and staying true to safety guidelines. These elements are the bedrock of worker well-being and the success of every construction endeavor.
