Key Takeaways: Direct vs. Indirect Heaters

• Direct-fired heaters offer high efficiency but can introduce by-products of combustion into the heated space.
• Indirect-fired heaters provide clean, dry heat ideal for enclosed or occupied areas.
• Factors such as space characteristics, ventilation requirements, and safety regulations influence heater selection.
• Consulting with Sunbelt Rentals can help you get the right industrial heater for your unique needs.

Understanding Direct-Fired Heaters

Direct-fired heaters operate on a straightforward principle: air comes into direct contact with the flame within the heater. That heated air is then moved into the space for fast and efficient heating, with nearly 99% of the fuel used converted into heat energy.

Advantages of Direct-Fired Heaters

• Straightforward design
• Lower in upfront costs
• Easier to service
• Good for open-air or larger ventilated areas

Disadvantages of Direct-Fired Heaters

• By-products of combustion are introduced into the space
• Not ideal for enclosed spaces without adequate fresh air supply

However, direct-fired heaters can offer quick heat delivery with lower operational costs in properly ventilated open-air spaces.

Types of Direct-Fired Heaters

Deciding whether to use a direct-fired furnace in a make-up air or recirculating application is equally as important as choosing between direct-fired and indirect-fired heaters. The right choice depends on your specific space and ventilation needs.

Make-Up Air Heaters

Make-up air heaters are designed to replace air that's been removed from a space, typically through exhaust systems. They're crucial for maintaining proper air balance and pressure in a building. These heaters draw in fresh outside air, heat it, and distribute it throughout the space. They're ideal for areas requiring continuous fresh air circulation and are often used in industrial settings or on construction sites where maintaining air quality is essential.

Recirculating Heaters

Recirculating direct-fired heaters work by continuously heating the air already present in the space. They're an excellent option for looser enclosures with a high potential for natural infiltration. Some examples of suitable applications include elevated concrete pours, large warehouses, and exterior conditioning.

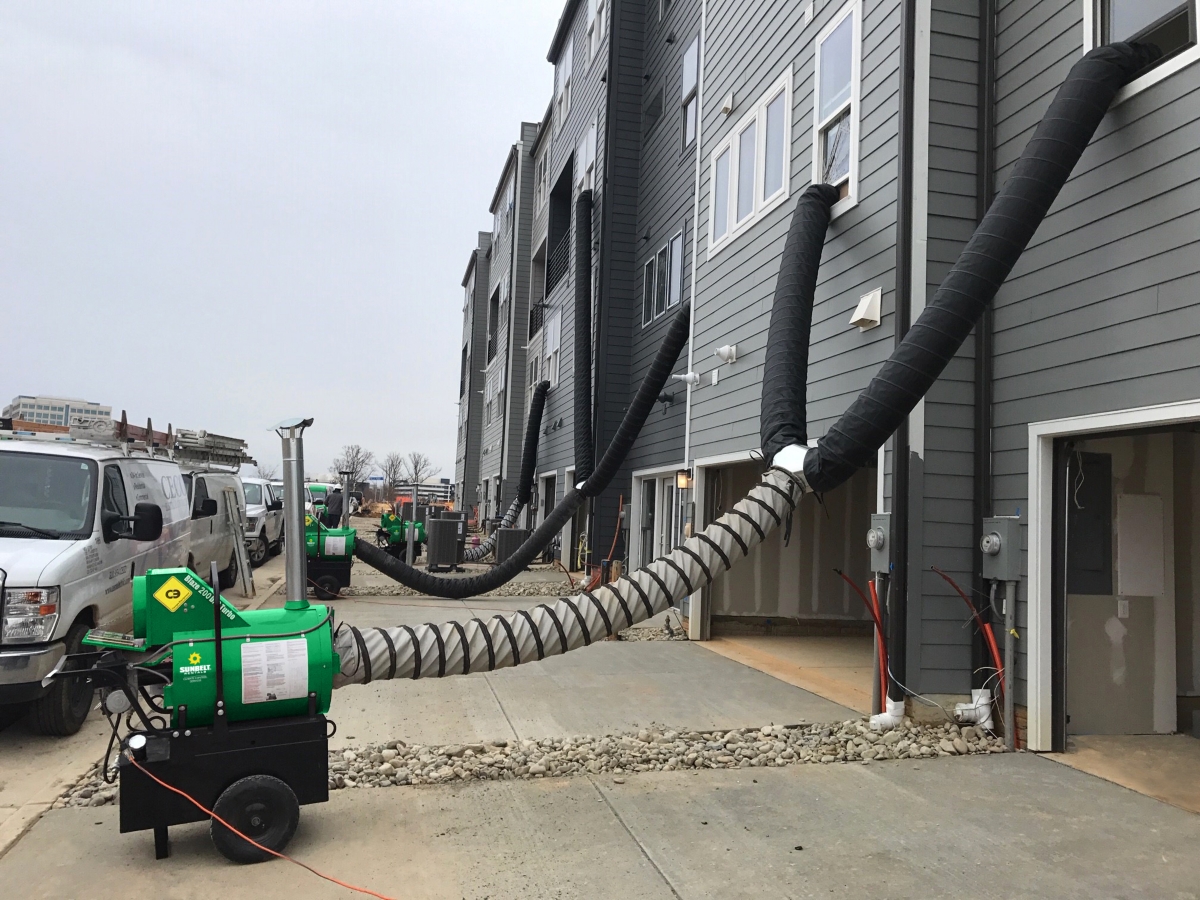

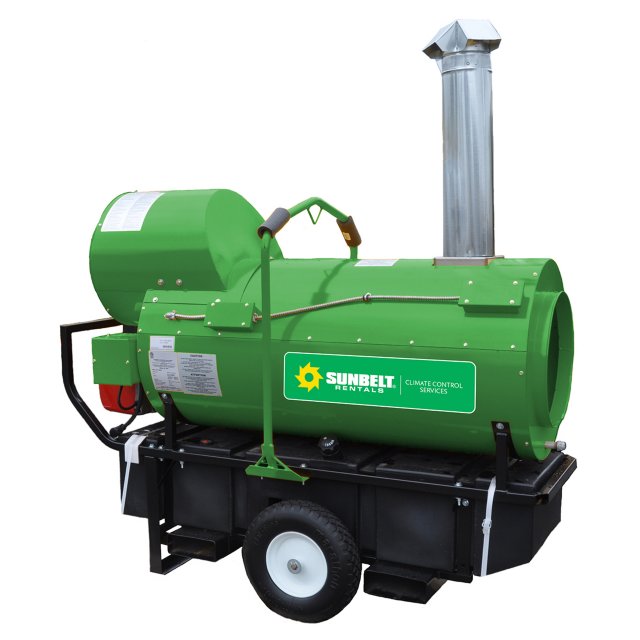

Understanding Indirect-Fired Heaters

Indirect-fired heaters have some significant differences from their direct-fired counterparts. Instead of the air coming into direct contact with the flame, these heaters use a combustion chamber to contain their flame. A heat exchanger, placed between the combustion chamber and the incoming air, absorbs the heat generated and indirectly transfers it to the air supply.

Advantages of Indirect-Fired Heaters

• By-products of combustion are safely vented outside
• Flame and fuel sources never encounter the heated air
• Provide safe and clean heating options for a wide-range of applications
• Preferred choice for most enclosed spaces
• No need for outside air or fresh air mixtures

Disadvantages of Indirect-Fired Heaters

• Less efficient energy transfer and reduced heating efficiency
• Less suitable for industrial applications that require precise temperature control
• Inclusion of a heat exchange and air handler increases the weight and size of the system

Although, safety requirements make indirect-fired heaters the preferred choice for most enclosed spaces. Since the flame is contained, there is no need for outside air or fresh air mixtures.

Choosing Between Direct-Fired and Indirect-Fired Heaters

Consider the following key factors as you’re selecting the best heater for your construction site.

Stage of Construction:

• Open to the elements: Direct-fired heaters are suitable due to natural ventilation.
• Enclosed building: Indirect-fired heaters are safer due to the lack of by-products of combustion.
• Rough work: Direct-fired heaters can be used if ventilation is adequate.
• Final finishes: Indirect-fired heaters are preferable to avoid introducing moisture or contaminants.

Site Ventilation:

• High natural airflow: Direct-fired heaters can be used safely.
• Limited natural airflow: Indirect-fired heaters are the safer choice.
• Running exhaust fans or other ventilation equipment: Direct-fired make-up air heaters can be suitable to balance air pressure.

Task-Specific Needs:

• Curing concrete: Direct-fired heaters provide efficient, high-output heat.
• Drying out drywall: Indirect-fired heaters offer clean, dry heat without introducing moisture.
• Keeping workers comfortable: Indirect-fired heaters in enclosed spaces; direct-fired in well-ventilated areas.
• Maintaining specific temperatures for material applications: Indirect-fired heaters often provide more precise temperature control.

Safety Regulations:

• Local codes for temporary heating: Always check local regulations; indirect-fired heaters often meet stricter safety standards.
• Specific air quality requirements: Indirect-fired heaters are typically better for maintaining air quality standards.

Fuel Availability:

• Accessible fuel types: Both direct and indirect-fired heaters can use various fuels; choose based on what's readily available.
• Restrictions on fuel storage or usage: Indirect-fired heaters may be preferable if there are strict fuel storage regulations on site.

Duration of Heating Needs:

• Short-term task: Direct-fired heaters can provide quick, efficient heating for brief periods.
• Long-term climate control: Indirect-fired heaters are often better for extended use, especially in enclosed spaces.

Safety always comes first. While direct-fired heaters offer high efficiency, they're not suitable for all stages of construction. Indirect-fired heaters, although potentially more costly to operate, provide a safer option for enclosed spaces and finish work.

Choosing Between Direct and Indirect Heaters

The right heater does more than just warm up your construction site. It keeps your team safe, your materials in good condition, and your project on schedule. Whether you choose a direct-fired or indirect-fired heater, make-up air or a recirculating system, the key is to match the solution to your specific needs.

Summary

Every construction site has its own unique challenges, and that's why expert advice is so valuable. Safety is our top priority at Sunbelt Rentals. Our heating experts have worked with contractors on all types of projects and can help you navigate these decisions safely. Let's work together to keep your construction project running smoothly all winter long.
