350 Amp Cc/Cv Inverter Welder

Overview

The 350 AMP CC/CV Inverter Welder is ideal for welding applications where an independent power source is required. Portable and reliable, these models feature multi-processing capabilities for a range of on-site applications. These units also provide 120/240V auxiliary power to operate electric lights and tools.

Specifications

Products are subject to availability.

Make	N.A.	N.A.	Lincoln	Miller

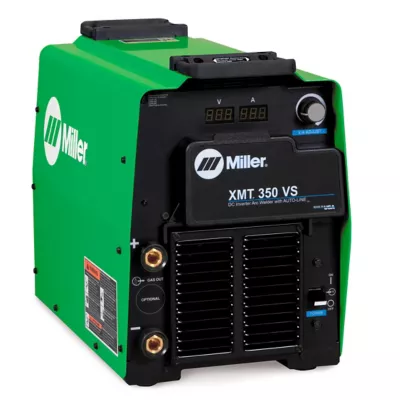

Model	N.A.	N.A.	Flextec 350X	XMT-350 VS
Dimensions	43"L x 34"W x 59"H	43"L x 34"W x 59"H	N.A.	N.A.
Input Power	230/460, 3-phase	230/460, 3-phase	N.A.	N.A.
Power Requirements	N.A.	N.A.	380/460/575/3/50/60	208-575V 1ø or 3ø
Processes	N.A.	N.A.	DC wire, Stick, Tig	Stick, TIG, MIG, Flux cored, Air carbon arc
Rated Output	N.A.	N.A.	300A, 32V, (100% duty cycle); 350A, 34V, (60% duty cycle)	350A at 60% duty cycle
Series	XMT	XMT	N.A.	N.A.
Weight	N.A.	N.A.	82 lbs	80 lbs

Safety information

Safety Requirements

Gloves
Safety Shoes

Hard Hat
